Wireless Products
MikroTik Product Details : Router Boards
  Cross Roads
CPU MIPS32 4KEc based 184MHz
Memory 32MB
Ethernet ports 1 x 10/100
Expansion Onboard 802.11b/g wireless card
Storage 64MB
CF slot no
Addon power
Power Jack 11~60V DC
PoE 12V or 48V DC
PoE Datalines yes
Software RouterOS Level4

RB 192 / Soho Router
CPU MIPS32 4Kc, 175MHz
Memory 32MB
Ethernet ports 9 x 10/100
Expansion 2 miniPCI
Storage 64MB
CF slot no
Addon power 14W
Power Jack 9~28V DC; Overvoltage protection
PoE 16~28V DC
PoE Datalines no
Software RouterOS Level4

  RB 133C / Small Scale CPE
CPU MIPS32 4Kc, 175MHz
Memory 16MB
Ethernet ports 1 x 10/100
Expansion 1 miniPCI
Storage 64MB
CF slot no
Addon power  14W
Power Jack 9~28V DC; Overvoltage protection
PoE 16~28V DC
PoE Datalines no
Software RouterOS Level3

RB 133 / Small Scale CP/AP
CPU MIPS32 4Kc, 175MHz
Memory 32MB
Ethernet ports 3 x 10/100
Expansion 2 miniPCI
Storage 64MB
CF slot no
Addon power 14W
Power Jack 9~28V DC; Overvoltage protection
PoE 16~28V DC
PoE Datalines no
Software RouterOS Level4

RB 150 / Mini Router
CPU MIPS32 4Kc, 175MHz
Memory 32MB
Ethernet ports 5 x 10/100
Expansion none
Storage 64MB
CF slot no
Addon power
Power Jack 9~28V DC; Over voltage protection
PoE 9~28V DC Passive PoE
PoE Datalines no
Software RouterOS Level4

RB 411 / Small Scale CPE
CPU Atheros AR7130 300MHz
Memory 32MB
Ethernet ports 3 x 10/100
Expansion 1 miniPCI
Storage 64MB
CF slot no
Addon power -
Power Jack 9~28V DC; Overvoltage protection
PoE 10~28V
PoE Datalines no
Software RouterOS Level3

RB 230 / Multifunctional Device
CPU X86 NSC SC1100 266MHz
Memory SODIMM slot
Ethernet ports 2 x 10/100
Expansion 1 miniPCI, 2 PCMCIA, 1 USB, 1 PCI
Storage CF slot, IDE
Addon power  9W
Power Jack 20~56V DC
PoE 48V DC
PoE Datalines no
Software None

RB 333 / High Performance AP/Router
CPU PowerPC E300 333MHz QUICC2 Pro
Memory 64MB
Ethernet ports 3 x 10/100
Expansion 3 miniPCI
Storage NAND
Addon power 19W
Power Jack 12~28V DC; Overvoltage protection
PoE 12~28V DC
PoE Datalines no
Software RouterOS Level4

RB 532 / Performance AP/Router
CPU MIPS32 4Kc, 266/400MHz
Memory 32/64MB
Ethernet ports 2 x 10/100
Expansion 2 miniPCI
Storage NAND, CF
Addon power 14W
Power Jack 6..22V or 25..56V
PoE 16~28V DC
PoE Datalines no
Software RouterOS Level4

RB 600 / Extreme Performance AP
CPU MPC8343E 266/400MHz network CPU
Memory 64MB DDR SDRAM
Ethernet ports 3 x 10/100/1000
Expansion 4 miniPCI
Storage NAND, 2x CF
Addon power -
Power Jack 10..56V DC
PoE 38..56V DC
PoE Datalines yes
Software RouterOS Level4

RB 1000 / Extreme Performance Router
CPU PPC8547 1333MHz network CPU
Memory SODIMM slot, 512Mb default
Ethernet ports 4 x 10/100/1000
Expansion none
Storage NAND, 2CF
Addon power N/A
Power Jack 12V
PoE none
PoE Datalines N/A
Software RouterOS Level6

R52 - The RouterBOARD R52 wireless 802.11a+b+g miniPCI card for multiband high speed applications! It can work either on 2.312 - 2.497 or 4.920 - 6.100GHz range. Our customers have achieved 100km+ distances with this card

Chipset Atheros AR5414
Standards IEEE802.11a, IEEE802.11b, IEEE802.11g
Media Access CSMA/CA with ACK
R52H - High power (~350mW with RouterOS) miniPCI wireless card for special applications

R52H is a wireless 802.11a+b+g miniPCI card for multiband high speed applications, with up to 350mW output power. It works on 2.192-2.539 and 4.920-6.100GHz frequency range and supports Turbo mode for faster transfers. The card performs best when coupled with the MikroTik RouterOS. R52H is optimized to work with MikroTik Nstreme protocol to reach extra long distances at a great speed. The Nstreme protocol is MikroTik proprietary wireless protocol created to overcome speed and distance limitations of IEEE 802.11 standards and to extend point-to-point and point-to-multi point wireless link performance.

IA/MP1 - MikroTik RouterBOARD 11 miniPCI to PCI adapter is an adapter for 3.3v miniPCI to PCI standard sockets. The adapter is provided in PCI card form with an integrated miniPCI slot that allows you to use miniPCI cards in standard PCI sockets. Also available with bracket for RP-TNC connector (product code IA/MP1R)


IA/MP4 - MikroTik RouterBOARD 14 miniPCI to PCI adapter is an advanced four-slot adapter for 3.3v miniPCI to PCI standard sockets. The adapter is provided in PCI card form with four integrated miniPCI slots that allow you to use four miniPCI cards in one standard PCI socket. Should not be used with SR5 or SR2 400mW miniPCI! (also available with bracket for four RP-TNC connectors -product code IA/MP4R)

IA/MP8 - MikroTik RouterBOARD 18 miniPCI to PCI adapter is an advanced eight-slot adapter for 3.3v miniPCI to PCI standard sockets. The adapter is provided in PCI card form with eight integrated miniPCI slots that allow you to use eight miniPCI cards in one standard PCI socket. Should not be used with SR5 or SR2 400mW miniPCI!


IA/MP1E - Only for wireless cards- doesn't support 3G interfaces
Specifications
RouterBOARD 11E
Slots One PCI Express Mini Card Slot for a 52 pin card
Standards PCI Express x1 (PCIe), doesn't support USB connectivity
Operation voltage PCIe 3.3V
Input power Up to 10W supplied to PCI Express Mini card
LEDs Three LEDs connected to each MiniPCI card (according to standards)
Dimensions 65mm x 100mm
Temperature Operational: 0°C to +70°C (32°F to 158°F)
Storage: -20°C to +80°C (-4°F to 176°F)
Requirements Available PCIe slot


Antenna

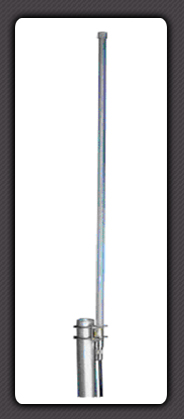

2.4GHz 12 dBi Omni-Directional Antenna
Model 12 dBi Omni
Frequency 2400-2500 MHz
Gain 12 dBi
Polarization Vertical
Vertical Beam-width 8 °
Horizontal Beam-width 360 °
Impedance 50 Ohm
Maximum Input Power 50 Watts
VSWR <1.5:1 average
Weight 1800g
Length 1200mm
Radome Material Grey Fibreglass
Wind Survival >200 Km/hr
Operating Temperature -40 ° C to 85 ° C
Connector N-Type Female

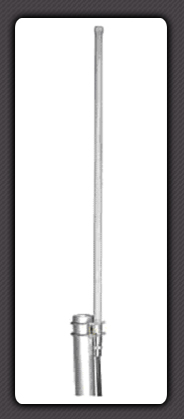

2.4GHz 9 dBi Omni-Directional Antenna
Model 9 dBi Omni
Frequency 2400-2500 MHz
Gain 9 dBi
Polarization Vertical
Vertical Beam-width 13 °
Horizontal Beam-width 360 °
Impedance 50 Ohm
Maximum Input Power 100 Watts
VSWR <1.5:1 average
Weight 1100g
Length 700mm
Radome Material Grey Fibre glass
Wind Survival >200 Km/hr
Operating Temperature -40 ° C to 85 ° C
Connector N-Type Female

  2.4GHz 16 dBi Directional Sector Antenna
Model 16 dBi Sector
Frequency 2400-2500 MHz
Gain 16 dBi
Polarization Vertical
Vertical Beam-width 13 °
Horizontal Beam-width 360 °
Impedance 50 Ohm
Maximum Input Power 200 Watts
VSWR <1,7:1
Weight 5000g
Length 1200mm
Width 180mm
Breadth 155mm
Radom Material ABS
Wind Survival >200 Km/hr
Operating Temperature -40 ° C to 85 ° C
Connector N-Type Female
Material Reflector Aluminum

2.4GHz 6 dBi Indoor Omni-Directional Ceiling Antenna
Model 6 dBi Indoor
Frequency 2400-2500 MHz
Gain 6 dBi
Polarization Linear, Vertical
Vertical Beam-width 63°
Horizontal Beam-width 360 °
Downtilt 40 °
Impedance 50 Ohm
Power Handling 20 W
VSWR 1.8:1 Max
Dimensions 5.20 x 6.25 inches
Weight 150g
Cable Length 2 Meters
Randome Colour White
Radome Material ABS
Wind Survival 180 Km/hr
Operating Temperature -40° C to 80 ° C
Connector SMA Female
Material Reflector Aluminum

19 dbi Parabolic Grid Antenna - 2.4GHz
Property Value
Frequency Range 2400 - 2483 Mz
VSWR <= 1.5
Polarization Horizontal & Vertical
Gain 19 dbi
Maximum Input Power 100 Watts
Impedance 50 Ohm
Connector N-Female
Horizontal Beam-width 14°
Vertical Beam-width 18°
Front-to-back Ratio 25 dB
Rated wind-velocity 60 meters / sec
Caliber 400 mm x 600 mm
Weight (Kg) .4 Kg
Mounting Kit D40-60 (mm)

18dBi Flat Panel Antenna - 2.4GHz
• Gain 18 dBi
• Horizontal Beam 20 Degrees
• Polarisation Vertical / Horizontal
• Vertical Beam 20 Degrees

Enclosures

CA/CRD - Universal Crossroads Indoor case (2 holes for Nfemale Bulkhead connectors or AC/SWI Swivel antennas)

CA/150 - This is the indoor case for the miniROUTER (RouterBOARD 150)


CA/133 - This is the aluminum indoor case for RB133 and RB133C, with holes for Nfemale bulkhead connectors

CA/133S - This is the aluminum indoor case for RB133 and RB133C, with holes for small indoor antenna AC/SWI

CA/333 - Universal RB333 Indoor case (3 holes for Nfemale Bulkhead connectors or AC/SWI Swivel antennas)

CA/600 - Universal RB600 Indoor case (3 holes for Nfemale Bulkhead connectors or AC/SWI Swivel antennas)


CA/OTS - One Ethernet insulator is included

CA/OUT - By default, only ONE Ethernet insulator and NO pigtails are included


MK/OTS - This is special metal bracket will improve the possible ways of mounting of the outdoor case

RouterBOARD Outdoor Case
Dimensions 180 x 254 x 89 mm
Material Polycarbonate
Color Light Grey
Operating temperature -40 C to 120 C

RouterBOARD Black Indoor Case
Dimensions 258 x 110 x 38 mm
Material Polycarbonate
Color Matt Black
Operating temperature -40 C to 120 C

Ethernet Interfaces
IN/E44 - This is the perfect four port card for a router or a server. The easy to use MDI/X feature (accepts both cross-over and straight cables) can now be used on your router or server. This device integrates four 10/100 Mbps Fast Ethernet ports into one card that is an ideal solution for connecting many networks to one router or for extending your network.
Chipset VIA Technologies VT6105M (VIA Rhine III chip)
Features MDI/X: cross/straight cable autodetection
Compatibility IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX Fast Ethernet; VLAN 802.1q
Dimensions: 107 x 124 x 19 mm
OS RouterOS, Windows, Linux, BSD




IN/G44 - This is the perfect four port card for a router or a server. The easy to use MDI/X feature (accepts both cross-over and straight cables) can now be used on your router or server. This device integrates four 10/100/1000Mbps Gigabit Ethernet ports into one card that is an ideal solution for connecting many networks to one router or for extending your network.

Chipset Realtek 8169SC
Form factor PCI standard
Ports Four 10/100/1000Mbit ports
Features MDI/X: cross/straight cable autodetection
Compatibility IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX Fast Ethernet; VLAN 802.1q
OS MikroTik RouterOS, Windows, Linux, BSD
Dimensions 107 x 124 x 19 mm

IN/G44V - This is the perfect four port card for a router or a server. The easy to use MDI/X feature (accepts both cross-over and straight cables) can now be used on your router or server. This device integrates four 10/100/1000Mbps Gigabit Ethernet ports into one card that is an ideal solution for connecting many networks to one router or for extending your network. RB44GV is an improved version of the popular RB44 gigabit four port PCI interface. This new card is based on the popular VIA VT6122 chipset. It supports MDI-X auto cross/straight cable detection, 10/100/1000 speeds and can be used in any operating system which has drivers for VT6122, including Windows, Linux and RouterOS. Use it to interconnect multiple networks to your router - RB44GV will cope with any situation.


Chipset VIA VT6122
Ports: Four 10/100/1000Mbit ports
Features MDI/X: cross/straight cable autodetection
Compatibility IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX Fast Ethernet; VLAN 802.1q
Dimensions: 107 x 124 x 19 mm
OS MikroTik RouterOS, Windows, Linux, BSD

Daughterboard etc.
RB/502 - To add two more miniPCI slots to your RB/532, use this attachment board



RB/564 - Even more additions are possible with this daugherboard. The total 6 miniPCI and 9 LAN ports on your RB/532! Note! You can not use more than two AR5414 chipset (e.g. R52) cards in RB/564. If you want to use three or four miniPCI cards in RB/564, you should use other chipset based ones for those extra slots, like CM9. For example, two R52 + two CM9 is OK, four CM9 is also OK, but not three or four R52.


RB/604 - RouterBOARD 604 daughterboard for RB/600 and RB/532A

SW/CL4 - RouterOS Level 4 (WISP) installed on the Compact Flash for RB/230


IA/PP1
- 'RouterBOARD 71' PCI Riser Card for RB/230


Accessories
Low Loss Satellite Cable
• Cable used to connect Radio to Wireless Antenna
• Length : 1 m to 1.5 m
• Cable Diameter : 1 cm
• N Connectors Diameter : 3 cm (both ends)

Adaptor, N Plug to N Plug, Straight Adaptor
Male-Male
50 Ohms Nickel


Adaptor, N Jack to N Jack
Adaptor

Female-Female
50 Ohms
Nickel


N T-CONNECTOR
Join two antenna cables to one N connection
This N T-connector has a male connector on a single-connection end, and has two female N connectors:
2.4GHz Surge Protector
CODE: LP-N-TY
Weight (Grams): 120.00


Power Supply and POE (Power Over Ethernet)

18POW
18V Power Supply for use with RB532, RB150, RB133, RB133C , RB192, RB/333, RB411, RB600 (Europe, UK, US, Australian available)



48POW
48v 30w Power Adapter + Power plug for RB230, RB532, RB600 (Europe, UK, US
available)

RB/P54
Passive POE Base Unit for use
with RB230, RB532, RB150, RB133, RB133C, RB192,
RB333, RB/411, RB/600


AC/UFL - Pigtail for connecting R52 or R52H wireless card to external antenna


AC/SWI - Perfect solution for Indoor Access Points. 2dBi
